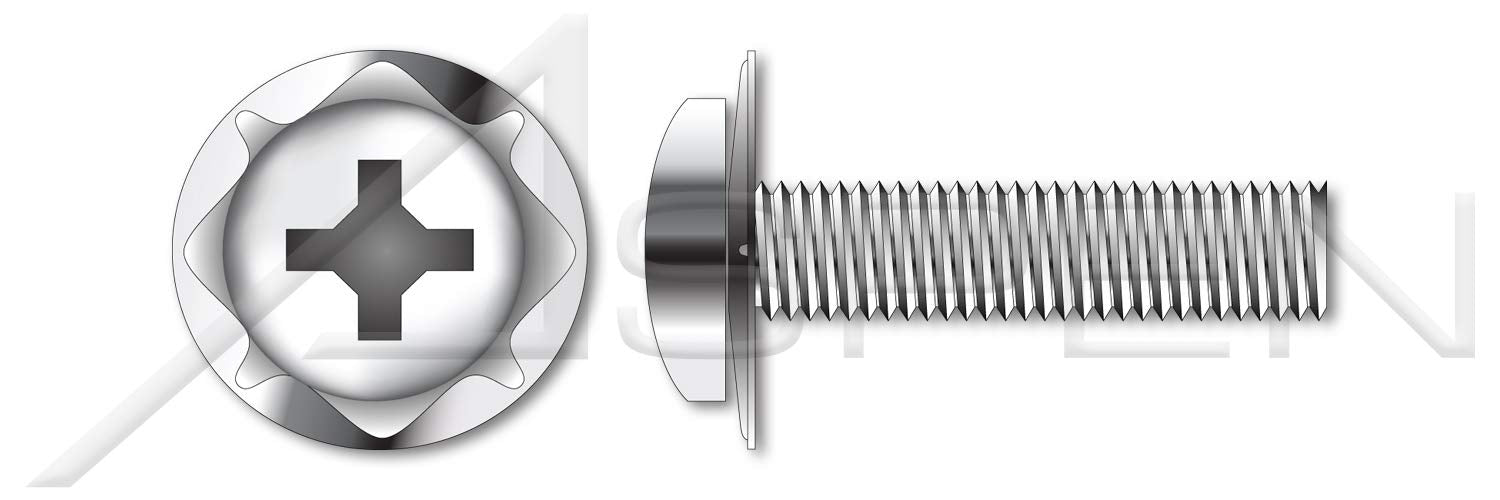

Name: (400 pcs) #8-32 X 3/8', Square Cone SEMS Washer Machine Screws, Pan Phillips Drive, Stainless Steel, Washer Material 410 Stainless Steel
Brand: ASPEN FASTENERS
SKU: OI2608248TC527CL
Price: 104.37 USD
Availability: InStock

(400 pcs) #8-32 X 3/8', Square Cone SEMS Washer Machine Screws, Pan Phillips Drive, Stainless Steel, Washer Material 410 Stainless Steel

$104.37 $276.07

Machine screws are designed for applications with a pre-tapped hole or mated to a threaded nut. SEMS screws come pre-assembled with permanently installed free-spinning lock washer. 18-8 stainless steel is functionally interchangeable with type 304 stainless steel. Stainless steel significantly improves resistance to tarnishing or corrosion.DIMENSIONAL ATTRIBUTES Diameter (Nominal): #8 Thread Pitch: 32 Diameter (Dimension): 0.164' Length (Nominal): 3/8' Thread Length (Nominal): 0.375' Outside Diameter (Minimum): 0.370' Outside Diameter (Maximum): 0.383' Thickness (Nominal): 0.035' Drive Recess Size: #2 Drive Recess Width: 0.175' Drive Recess Depth (Minimum): 0.071' Drive Recess Depth (Maximum): 0.097' Head Diameter (Minimum): 0.306' Head Diameter (Maximum): 0.322' Head Height, Overall (Minimum): 0.105' Head Height, Overall (Maximum): 0.115' Head Radius: 0.015'PRODUCT ATTRIBUTES Category: Machine Screws System of Measurement: Inch Brand: Aspen Fasteners Form and Design: SEMS Screws Pre-Assembled with a Captive Lock Washer Head Style: Pan Head Head Style Detail: Free-Spinning 410 Stainless Steel Square Cone Lock Washer Drive Style: Cruciform Recess Drive Drive Detail: Phillips Type H Thread Length: Full Thread Thread Direction: Right-Hand Thread Material: Stainless Steel Material Grade: 18-8 Stainless Steel Coating: Uncoated Origin: Origin Undefined Standards and Specifications: ASME B18.13

Features & Specs
