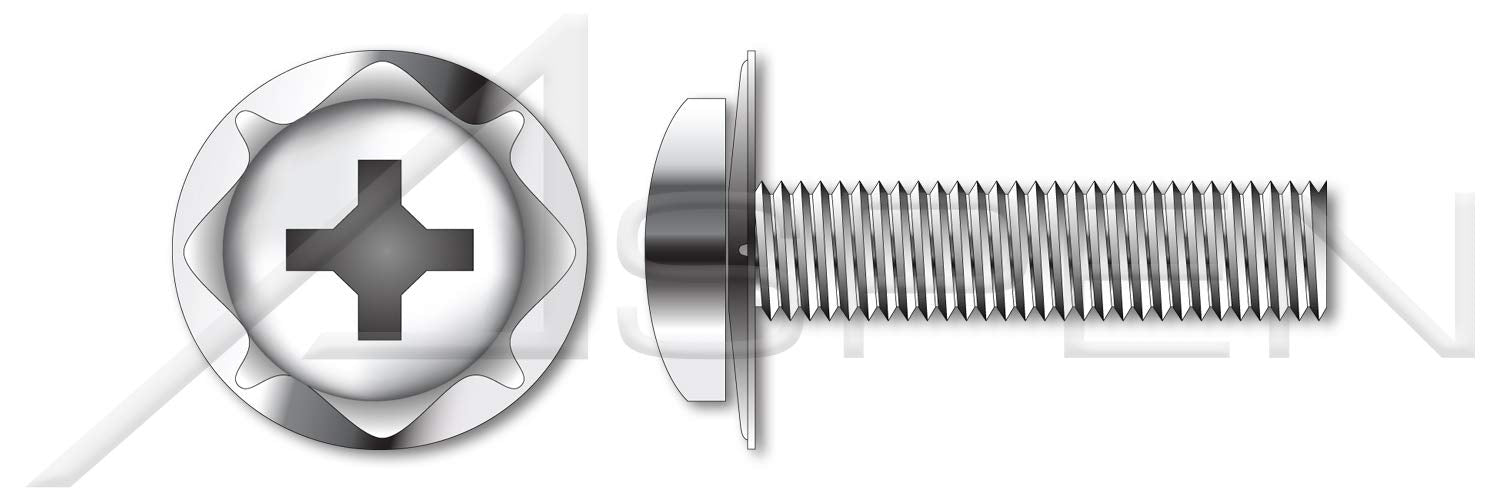

Name: (400 pcs) #10-32 X 3/8', Square Cone SEMS Washer Machine Screws, Pan Phillips Drive, Stainless Steel, Washer Material 410 Stainless Steel
Brand: ASPEN FASTENERS
SKU: CO260824QTE66MTK
Price: 86.33 USD
Availability: InStock

(400 pcs) #10-32 X 3/8', Square Cone SEMS Washer Machine Screws, Pan Phillips Drive, Stainless Steel, Washer Material 410 Stainless Steel

$86.33 $228.36

Machine screws are designed for applications with a pre-tapped hole or mated to a threaded nut. SEMS screws come pre-assembled with permanently installed free-spinning lock washer. 18-8 stainless steel is functionally interchangeable with type 304 stainless steel. Stainless steel significantly improves resistance to tarnishing or corrosion.DIMENSIONAL ATTRIBUTES Diameter (Nominal): #10 Thread Pitch: 32 Diameter (Dimension): 0.190' Length (Nominal): 3/8' Thread Length (Nominal): 0.375' Outside Diameter (Minimum): 0.433' Outside Diameter (Maximum): 0.446' Thickness (Nominal): 0.035' Drive Recess Size: #2 Drive Recess Width: 0.192' Drive Recess Depth (Minimum): 0.089' Drive Recess Depth (Maximum): 0.113' Head Diameter (Minimum): 0.357' Head Diameter (Maximum): 0.373' Head Height, Overall (Minimum): 0.122' Head Height, Overall (Maximum): 0.133' Head Radius: 0.020'PRODUCT ATTRIBUTES Category: Machine Screws System of Measurement: Inch Brand: Aspen Fasteners Form and Design: SEMS Screws Pre-Assembled with a Captive Lock Washer Head Style: Pan Head Head Style Detail: Free-Spinning 410 Stainless Steel Square Cone Lock Washer Drive Style: Cruciform Recess Drive Drive Detail: Phillips Type H Thread Length: Full Thread Thread Direction: Right-Hand Thread Material: Stainless Steel Material Grade: 18-8 Stainless Steel Coating: Uncoated Origin: Origin Undefined Standards and Specifications: ASME B18.13

Features & Specs
