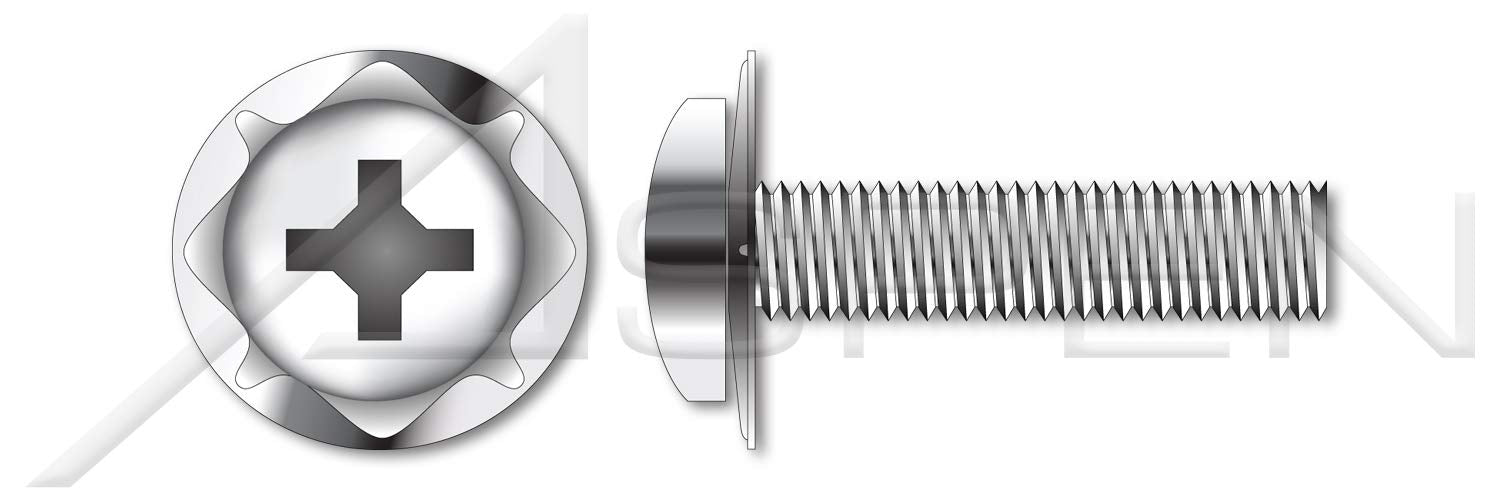

Name: (1500 pcs) 1/4'-20 X 1/2', Square Cone SEMS Washer Machine Screws, Pan Phillips Drive, Stainless Steel, Washer Material 410 Stainless Steel
Brand: ASPEN FASTENERS
SKU: 5C260824WWLUWK0H
Price: 690.76 USD
Availability: InStock

(1500 pcs) 1/4'-20 X 1/2', Square Cone SEMS Washer Machine Screws, Pan Phillips Drive, Stainless Steel, Washer Material 410 Stainless Steel

$690.76 $1,786.50

Machine screws are designed for applications with a pre-tapped hole or mated to a threaded nut. SEMS screws come pre-assembled with permanently installed free-spinning lock washer. 18-8 stainless steel is functionally interchangeable with type 304 stainless steel. Stainless steel significantly improves resistance to tarnishing or corrosion.DIMENSIONAL ATTRIBUTES Diameter (Nominal): 1/4' Thread Pitch: 20 Diameter (Dimension): 0.250' Length (Nominal): 1/2' Thread Length (Nominal): 0.500' Outside Diameter (Minimum): 0.495' Outside Diameter (Maximum): 0.515' Thickness (Nominal): 0.045' Drive Recess Size: #3 Drive Recess Width: 0.274' Drive Recess Depth (Minimum): 0.118' Drive Recess Depth (Maximum): 0.144' Head Diameter (Minimum): 0.473' Head Diameter (Maximum): 0.492' Head Height, Overall (Minimum): 0.162' Head Height, Overall (Maximum): 0.175' Head Radius: 0.035'PRODUCT ATTRIBUTES Category: Machine Screws System of Measurement: Inch Brand: Aspen Fasteners Form and Design: SEMS Screws Pre-Assembled with a Captive Lock Washer Head Style: Pan Head Head Style Detail: Free-Spinning 410 Stainless Steel Square Cone Lock Washer Drive Style: Cruciform Recess Drive Drive Detail: Phillips Type H Thread Length: Full Thread Thread Direction: Right-Hand Thread Material: Stainless Steel Material Grade: 18-8 Stainless Steel Coating: Uncoated Origin: Origin Undefined Standards and Specifications: ASME B18.13

Features & Specs
