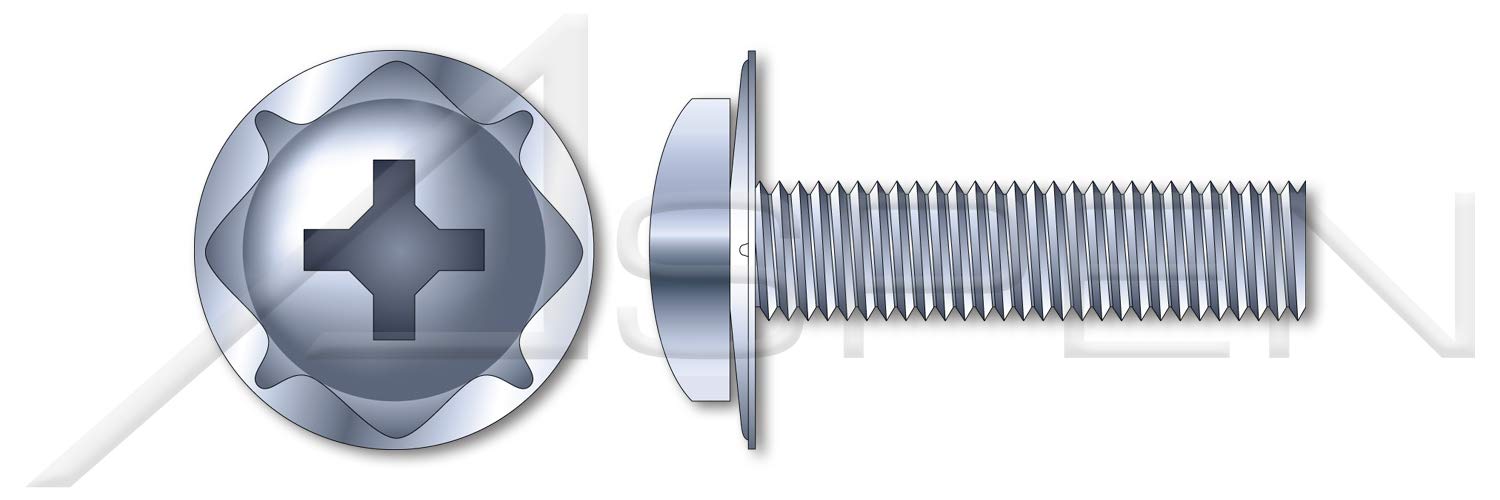

(5000 pcs) #10-24 X 1/2', SEMS Square Cone Washer Machine Screws, Pan Phillips Drive, Steel, Zinc Plated and Baked

DIMENSIONAL ATTRIBUTES | Diameter (Nominal): #10 | Thread Pitch: 24 | Diameter (Dimension): 0.190' | Length (Nominal): 1/2' | Thread Length (Nominal): 0.500' | Outside Diameter (Minimum): 0.433' | Outside Diameter (Maximum): 0.446' | Thickness (Nominal): 0.035' | Drive Recess Size: #2 | Drive Recess Width: 0.192' | Drive Recess Depth (Minimum): 0.089' | Drive Recess Depth (Maximum): 0.113' | Head Diameter (Minimum): 0.357' | Head Diameter (Maximum): 0.373' | Head Height, Overall (Minimum): 0.122' | Head Height, Overall (Maximum): 0.133' | Head Radius: 0.020' | PRODUCT ATTRIBUTES | Category: Machine Screws | System of Measurement: Inch | Brand: Aspen Fasteners | Form and Design: SEMS Screws Pre-Assembled with a Captive Lock Washer | Head Style: Pan Head | Head Style Detail: Free-Spinning Square Cone Lock Washer | Drive Style: Cruciform Recess Drive | Drive Detail: Phillips Type H | Thread Length: Full Thread | Thread Direction: Right-Hand Thread | Material: Steel | Coating: Zinc Plated and Baked | Coating Color: Clear | Origin: Origin Undefined | Standards and Specifications: ASME B18.13a and SAE J82 | NB: Product images are copyrighted artistic representations which may not reflect the product's exact appearance, proportions and/or relative dimensions.

Features & Specs

• Drive System : Phillips
• Head Type : Pan
• Screw Head Style : Pan
• Thread Size : #10-24
• Thread Style : Right Hand

Item details

• ASIN : B01AWR4SHQ
• Brand : ASPEN FASTENERS
• Item Weight : 27.5 Pounds
• Manufacturer : Aspen Fasteners
• Model : AMSC214-1024X12-005000
• Number Of Items : 1
• Part Number : AMSC214-1024X12-005000
• UPC : 698435371637
• Unit Count : 5000.0 Count

Materials & Care

• Exterior Finish : Zinc
• Material Type : Steel
• Metal Type : Zinc,Steel

Measurements

• Fastener Size : No. 10
• Item Dimensions : 0.5 x 0.19 x 0.5 inches
• Item Weight : 27.5 Pounds
• Size Name : #10-24 X 1/2'
• Thread Coverage : Fully Threaded
• Thread Size : #10-24
