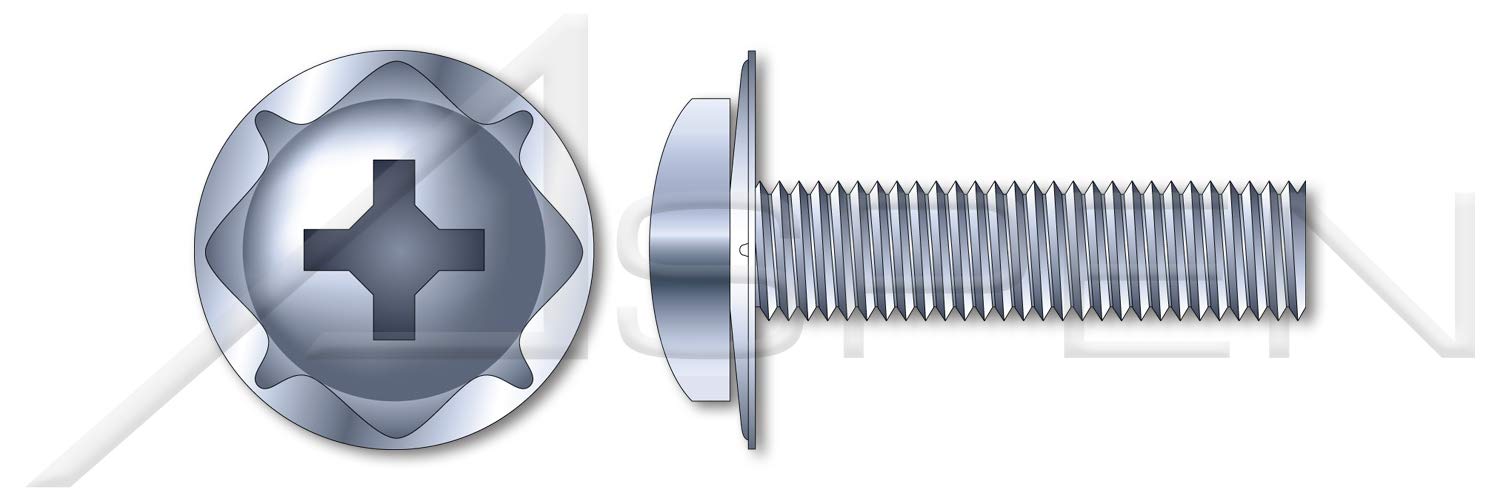

(3000 pcs) 1/4'-20 X 1/2', SEMS Square Cone Washer Machine Screws, Pan Phillips Drive, Steel, Zinc Plated and Baked

(3000 pcs) 1/4'-20 X 1/2', SEMS Square Cone Washer Machine Screws, Pan Phillips Drive, Steel, Zinc Plated and Baked

$289.29 $809.56
Skip to product information
(3000 pcs) 1/4'-20 X 1/2', SEMS Square Cone Washer Machine Screws, Pan Phillips Drive, Steel, Zinc Plated and Baked
  • (3000 pcs) 1/4'-20 X 1/2', SEMS Square Cone Washer Machine Screws, Pan Phillips Drive, Steel, Zinc Plated and Baked
  • (3000 pcs) 1/4'-20 X 1/2', SEMS Square Cone Washer Machine Screws, Pan Phillips Drive, Steel, Zinc Plated and Baked
(3000 pcs) 1/4'-20 X 1/2', SEMS Square Cone Washer Machine Screws, Pan Phillips Drive, Steel, Zinc Plated and Baked

(3000 pcs) 1/4'-20 X 1/2', SEMS Square Cone Washer Machine Screws, Pan Phillips Drive, Steel, Zinc Plated and Baked

$289.29 $809.56

DIMENSIONAL ATTRIBUTES | Diameter (Nominal): 1/4' | Thread Pitch: 20 | Diameter (Dimension): 0.250' | Length (Nominal): 1/2' | Thread Length (Nominal): 0.500' | Outside Diameter (Minimum): 0.495' | Outside Diameter (Maximum): 0.515' | Thickness (Nominal): 0.045' | Drive Recess Size: #3 | Drive Recess Width: 0.274' | Drive Recess Depth (Minimum): 0.118' | Drive Recess Depth (Maximum): 0.144' | Head Diameter (Minimum): 0.473' | Head Diameter (Maximum): 0.492' | Head Height, Overall (Minimum): 0.162' | Head Height, Overall (Maximum): 0.175' | Head Radius: 0.035' | PRODUCT ATTRIBUTES | Category: Machine Screws | System of Measurement: Inch | Brand: Aspen Fasteners | Form and Design: SEMS Screws Pre-Assembled with a Captive Lock Washer | Head Style: Pan Head | Head Style Detail: Free-Spinning Square Cone Lock Washer | Drive Style: Cruciform Recess Drive | Drive Detail: Phillips Type H | Thread Length: Full Thread | Thread Direction: Right-Hand Thread | Material: Steel | Coating: Zinc Plated and Baked | Coating Color: Clear | Origin: Origin Undefined | Standards and Specifications: ASME B18.13a and SAE J82 | NB: Product images are copyrighted artistic representations which may not reflect the product's exact appearance, proportions and/or relative dimensions.

Features & Specs

  • Drive System : Phillips
  • Head Type : Pan
  • Screw Head Style : Pan
  • Thread Size : 1/4'-20
  • Thread Style : Right Hand

Item details

  • ASIN : B01AWR52XA
  • Brand : ASPEN FASTENERS
  • Item Weight : 34.5 Pounds
  • Manufacturer : Aspen Fasteners
  • Model : AMSC214-1420X12-003000
  • Number Of Items : 1
  • Part Number : AMSC214-1420X12-003000
  • UPC : 698435371682
  • Unit Count : 3000.0 Count

Materials & Care

  • Exterior Finish : Zinc
  • Material Type : Steel
  • Metal Type : Zinc,Steel

Measurements

  • Item Dimensions : 0.5 x 0.25 x 0.5 inches
  • Item Weight : 34.5 Pounds
  • Size Name : 1/4'-20 X 1/2'
  • Thread Coverage : Fully Threaded
  • Thread Size : 1/4'-20
