10-9X1 1/4 Square Phillips Drive Round Washer Deep Thread Type17 2/3 Thread Zinc (Pack Qty 3,300) BC-1020DXRW17 By Shorpioen
10-9X1 1/4 Square Phillips Drive Round Washer Deep Thread Type17 2/3 Thread Zinc (Pack Qty 3,300) BC-1020DXRW17 By Shorpioen

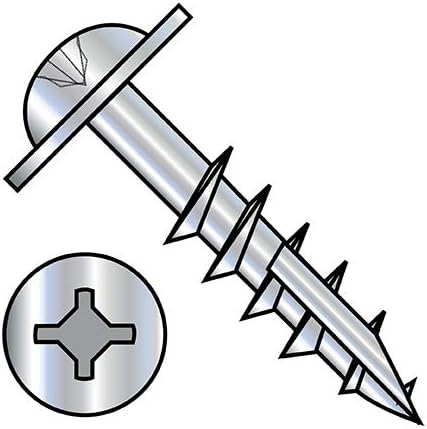

PICTURES ARE REPRESENTATIVE OF ITEM, BUT ARE NOT OF THE ACTUAL ITEM. Product dimensions, finish, head markings, thread length, stamping shape or forging shape, etc., may differ from picture. Products are guaranteed to meet the specifications to which they are manufactured. Specifications allow for tolerances in dimension and shape, which can vary from lot to lot. An externally threaded fastener with a dome-shaped head and an integrally formed washer; a recess that can accommodate either a Phillips or Square screwdriver; and a single lead thread. The shank has a reduced diameter and a chip cavity cut out where the final several threads, ending at the tip. The deeper thread design offers greater resistance to pull-out forces. The chip cavity (or auger point) enables the fastener to drive – especially in denser woods – without pre-drilling a pilot hole. The head offers a greater bearing surface than a countersunk design. Used to attach surface-mounted door hinger or locks hasps into dense woods or when attaching two pieces of wood through a pocket hole.
Item details
- ASIN : B08VRHPCR9
- Brand : Shorpioen
- Item Weight : 26.4 Pounds
- Manufacturer : Shorpioen LLC
- Model : BC-1020DXRW17
- Number Of Items : 3300
- Part Number : BC-1020DXRW17
Materials & Care
- Exterior Finish : Zinc
- Material Type : Zinc
Measurements
- Item Weight : 26.4 Pounds
- Size Name : 10-9X1 1/4
